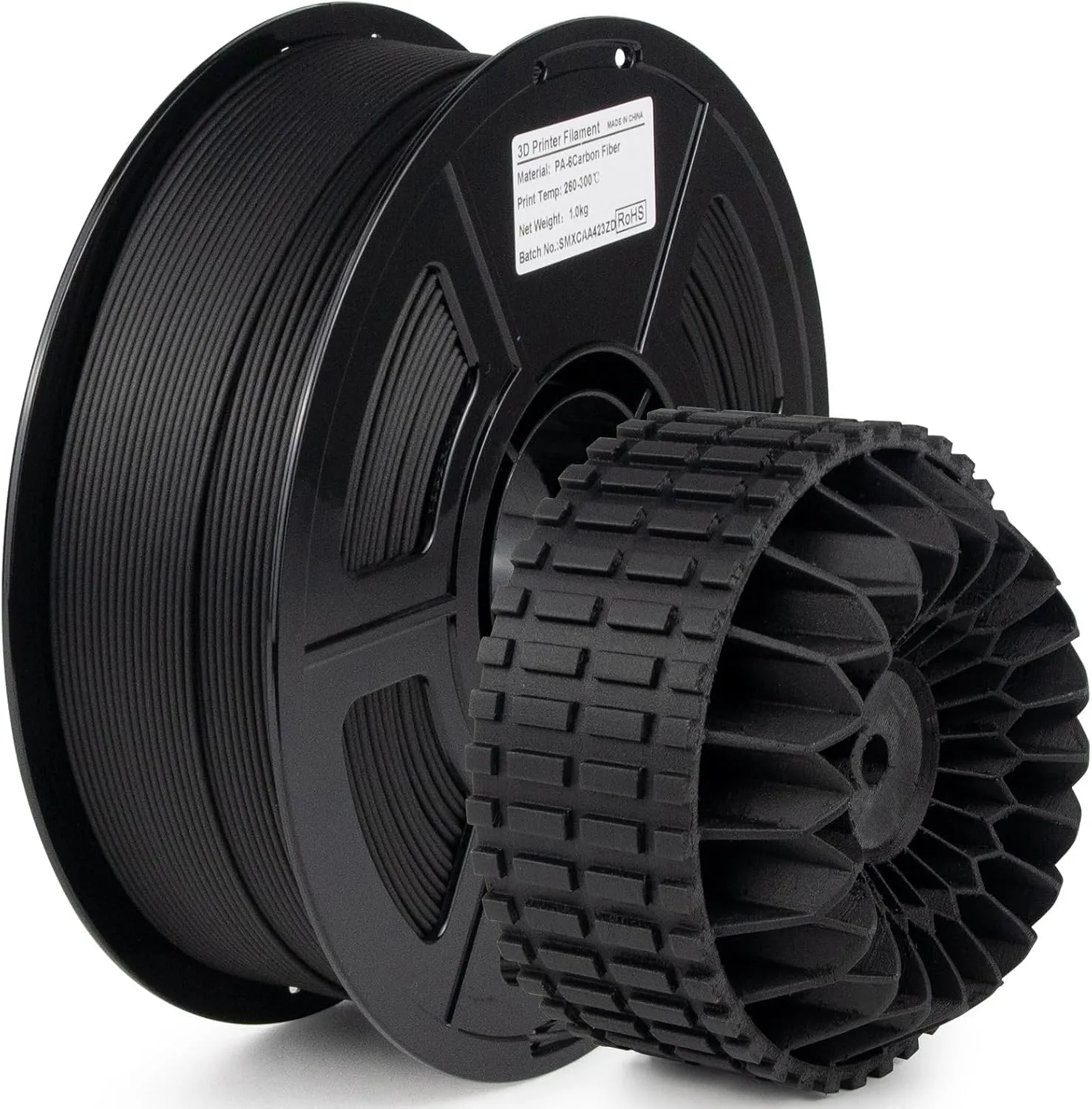

- [15% High-Modulus Carbon Fiber Filled Nylon]-The material of iSANGHU Industrial PA6 CF comes from Germany, is a composite filament material that is 15% Chopped carbon fiber filled and based on Nylon 6 (Polyamide 6). This carbon fiber-reinforced material greatly enhances the material's overall performance and reduces the risk of warping during printing.

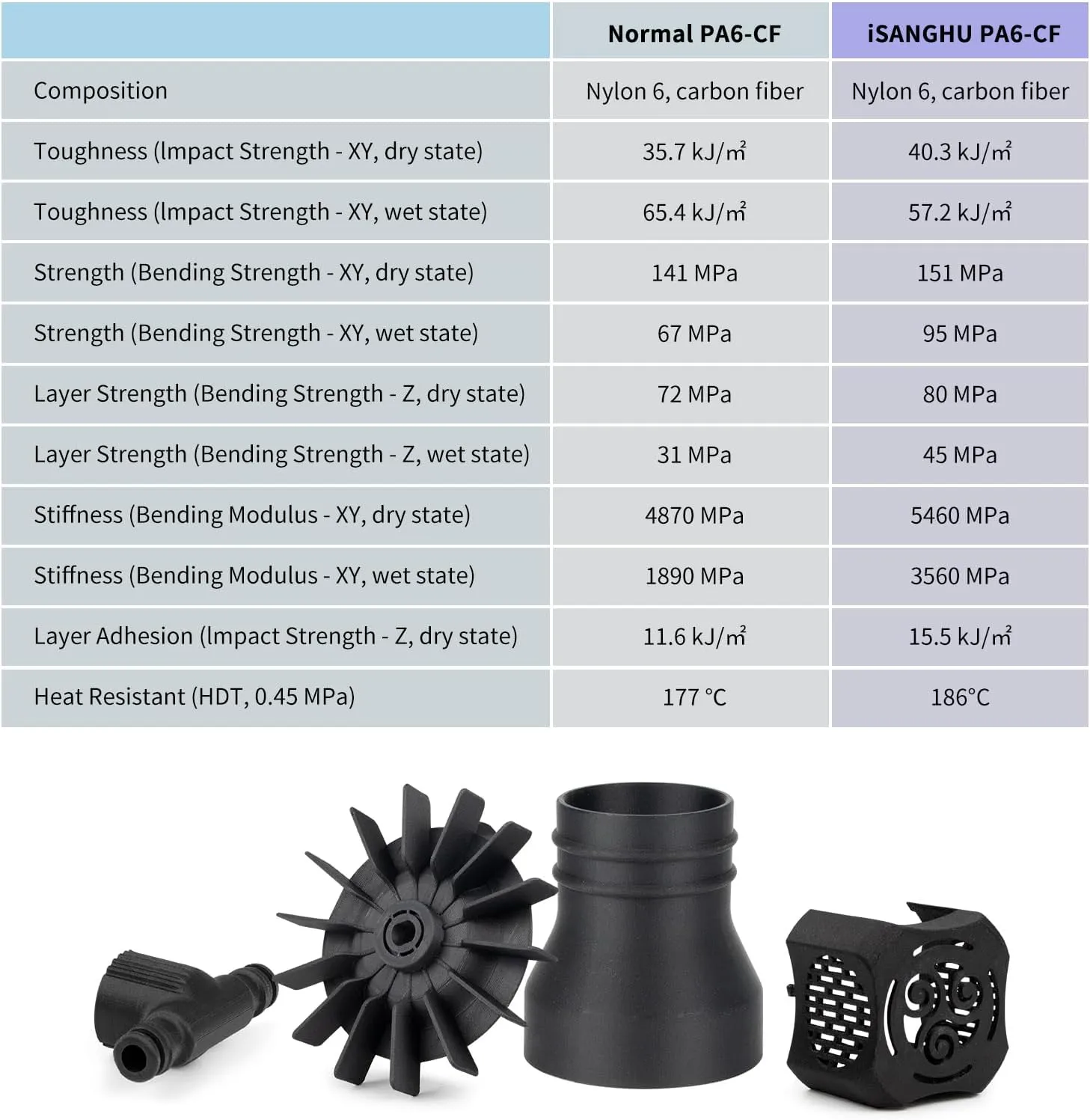

- [Excellent Mechanical Properties]-iSANGHU's PA6-CF has exceptional mechanical properties due to its advanced formulation using high-quality Nylon and chopped carbon fibers. Our Smart Fiber Enhanced Technology ensures optimal dispersion and distribution of carbon fibers during extrusion, resulting in a mesh skeleton structure that bears most of the load transferred by the material matrix to improve mechanical properties, heat resistance, and dimensional stability.
- [Stable tolerance & Good Layer Adhesion]-Advanced CCD diameter measuring and self-adaptive control system in manufacturing ensure strict tolerances. Diameter 1.75mm, dimensional accuracy / - 0.02 mm. The low shrinkage and stable printing dimensions make the fusion between the layers very good to obtain an even better-bridging result.
- [Wide Industrial Applications]-The carbon fiber filament 3d printing materials enable lightweight and durability, suitable for applications requiring torsional, tensile, and impact strength such as functional prototypes, tools, fixtures, end-use parts, pump impellers, mechanical gears, precision, and engineering components, widely used in robots, drones, automotive, aerospace and Medical industry.
- [Tips for Printing]-The PA6-CF is highly abrasive and can wear out and clog stock 0.4mm brass nozzles rapidly. A larger diameter (0.6mm or more), abrasion-resistant hardened steel or ruby nozzles nozzle is highly recommended, and keep your nozzles clean between every several prints or so. The recommended drying temperature is 80 ℃ for 10 hours in a blast drying oven, or 90 ℃ for 12 hours on a heat bed before printing. Print Temp: 250°C - 290°C, Bed Temp: 80°C - 100°C, Print Speed: 30-100mm/s.
