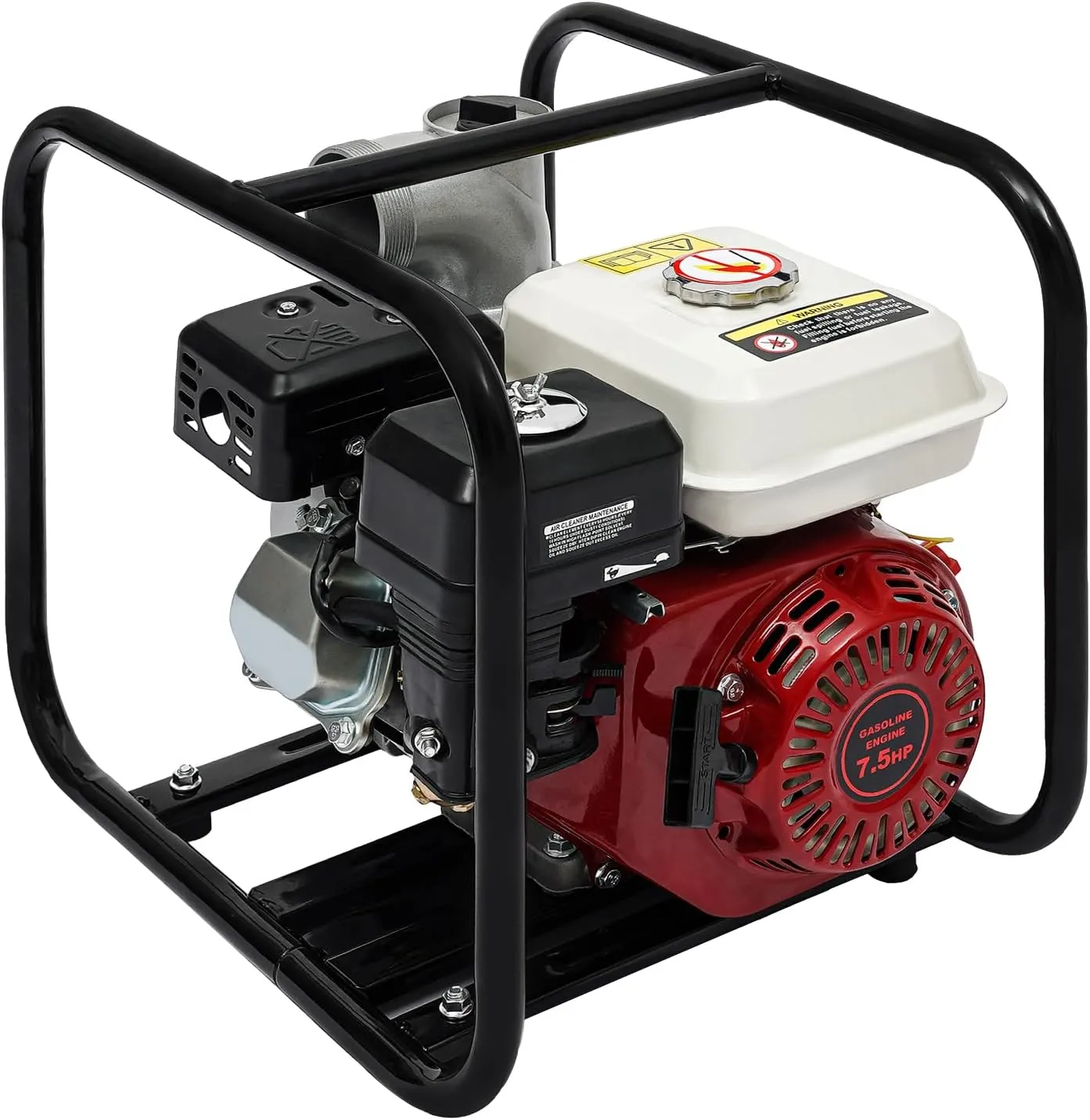

- 🌾【Efficient Water Pumping】 The 7.5HP high-power engine with 210cc displacement gives it a rotation speed of 3600rpm and provides a flow rate of up to 2118.88ft³/h to quickly pump water out of rivers or ponds, and provides a suction height of 22.97ft and a total lift height of 91.86ft, providing reliable and high-performance irrigation, improving your efficiency, and saving you time.
- 🌾【Large Capacity】The 0.95gal oil pot of this product meets your continuous working needs, reduces refueling frequency, and saves time.
- 🌾【Low Fuel Consumption】 Compared to two-stroke machines, four-stroke machines consume less fuel and are more energy-efficient.
- 🌾【High Quality Material】This product mainly consists of an aluminum alloy pump body and an iron frame and adopts polishing, spray molding, and galvanizing processes to provide high hardness, high wear resistance, corrosion resistance, rust prevention performance, and long service life.
- 🌾【High Safety】The aluminum alloy pump body and the multiple heat dissipation holes can timely dissipate the heat and avoid burnout or breakdown to effectively guarantee the use safety. The built-in oil protector prevents cylinder pulling and bursting caused by not adding oil or insufficient oil, making it reliable and safe to use.
- 🌾【High Stability】The quadrilateral base frame and enlarged anti-slip feet provide greater stability and effective vibration reduction to ensure better performance in harsh environments.
- 🌾【Easy to Install and Use】The product has been 85% assembled, together with the complete accessories and English manual, so you can install it easily. It adopts a manual recoil start, and the throttle and flameout switches make it convenient for you to operate.
- 🌾【Application】It is ideal for long-distance water transmission in farmland, garden irrigation, greenhouse planting, ground cleaning, fishpond aquaculture, fast drainage, water collection, swimming pool water exchange, water extraction from deep wells, firefighting, and so on.
How to Start
1. Add four-stroke special engine oil.
2. Add pure gasoline to the four-stroke engine.
3. Fill the water injection port with water.
4. Turn the air door up and close.
5. Press the oil bubble to fill it with oil.
6. Pull the starter and hear the roar.
7. Push down the air door to open it.
8. Pull the starter again to start it.
Specification
- Material: Aluminum Alloy and Iron
- Color: Black, Silver, White, Red
- Processes: Polishing, Spray Molding, and Galvanizing
- Assembly Required: Yes
- Number of Items: 1
- Model: WP30
- Engine Type: 170F
- Start Method: Recoil Start
- Output Mode: Direct Connection
- Engine Type: Single Cylinder, Air-cooled, Four Stroke
- Power Source: Gasoline
- Connection Diameter: 80mm/3in
- Capacity: 60m³/2118.88ft³/h
- Total Head: 30mm/1.18in
- Displacement: 210cc
- Power: 7.5 HP, 5.5kw
- Speed: 3600rpm
- Oil Pot Capacity: 3.6L/0.95gal
- Max. Water Pumping Capacity: 1000L/264gal/min
- Suction Force: 0.08mpa
- Lifting Height: 28m/91.86ft
- Maximum Suction Lift: 7m/22.96ft
- Product Size: 47*37*39cm/18.5*14.57*15.3in
- Package Size: 51*39*43cm/20.08*15.35*16.93in
- Gross Weight: 22kg/48.5lb
- Net Weight: 21kg/46.3lb
Package Included
- 1*Water Transfer Pump
- 1*English Manual
- All Accessories Required for Installation
